Design for Public Spaces

Location: Carmo terraces, Lisbon The aim for this project is to develop a design idea which will improve this public space both functionally and aesthetically, with the main focusing being on empathising the sites initial purpose which was to connect two districts together. Mainly focusing on the rooftop area of the site, the aim of the design is to create a space which connects people and acts as an escape from the city, as well as to add another successful viewpoint within the city. In general the proposed design is to be fitting in with/complementing the overall site and feel of Lisbon. The main concept used is curves, inspired by the cobblestone pavement just outside of the site which has a curved, wavy pattern. This shape was taken into the site by creating a series of paths which connect different points together, as well as influenced the form of the swings.

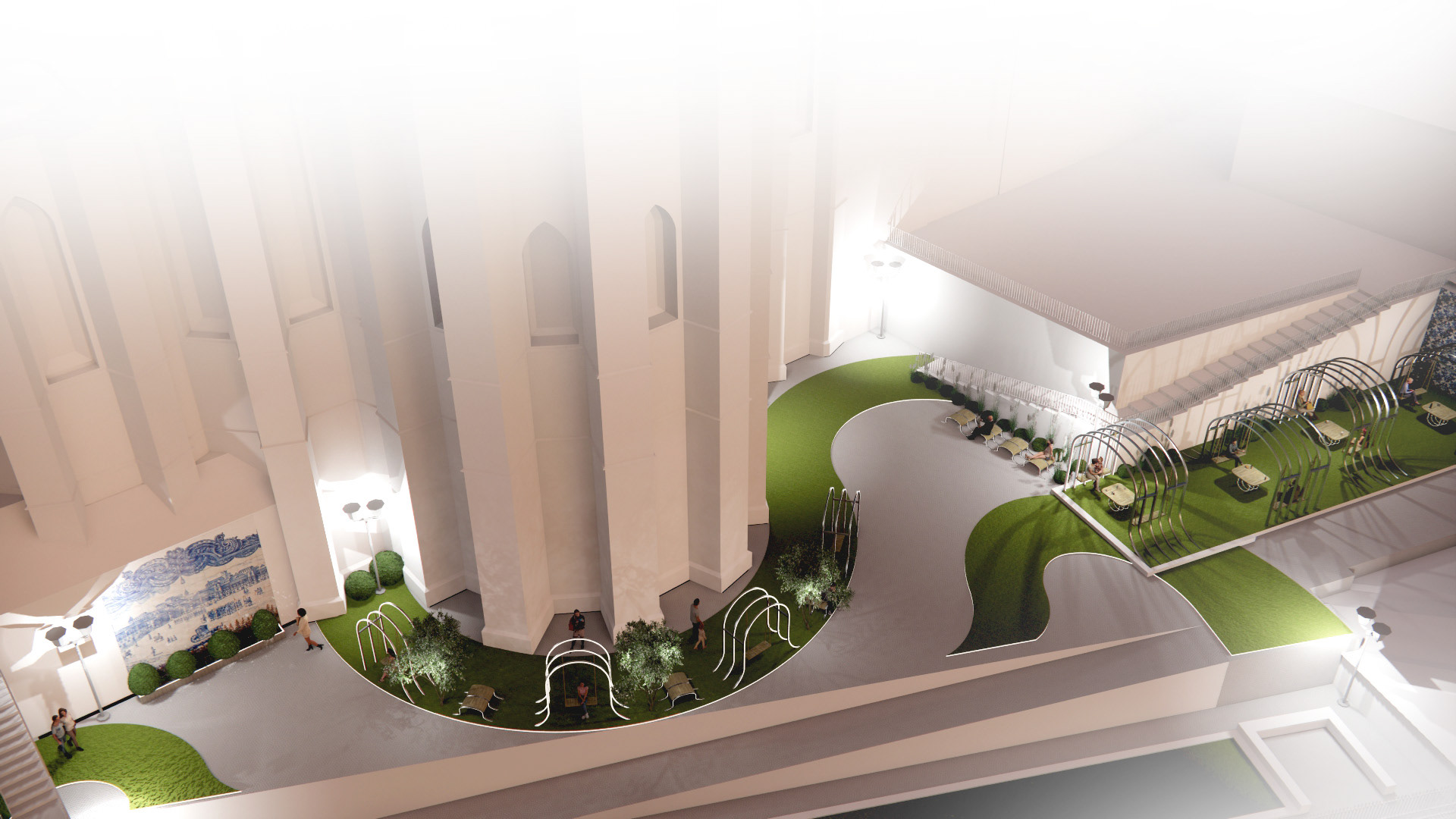

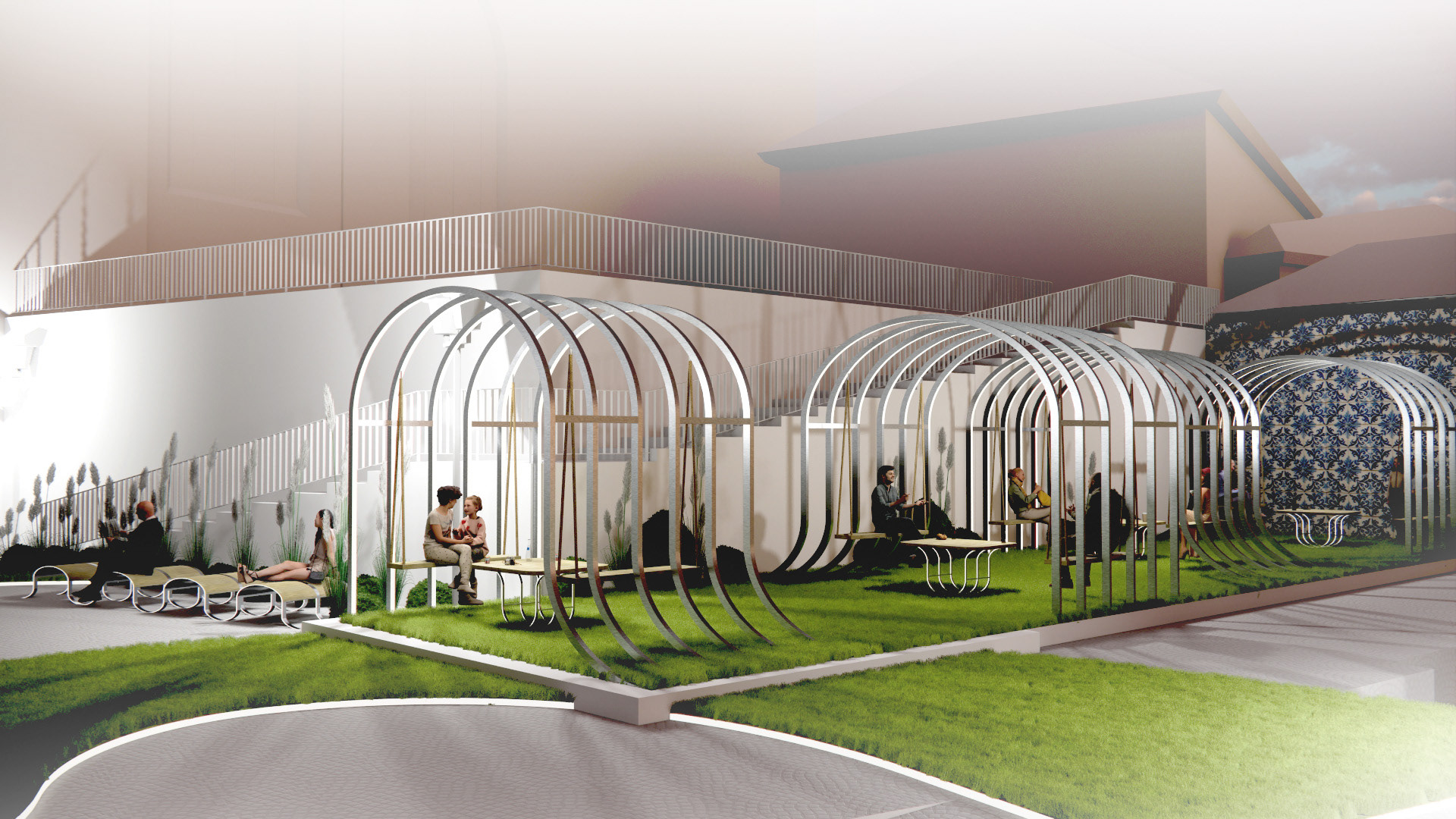

Overall designed public space

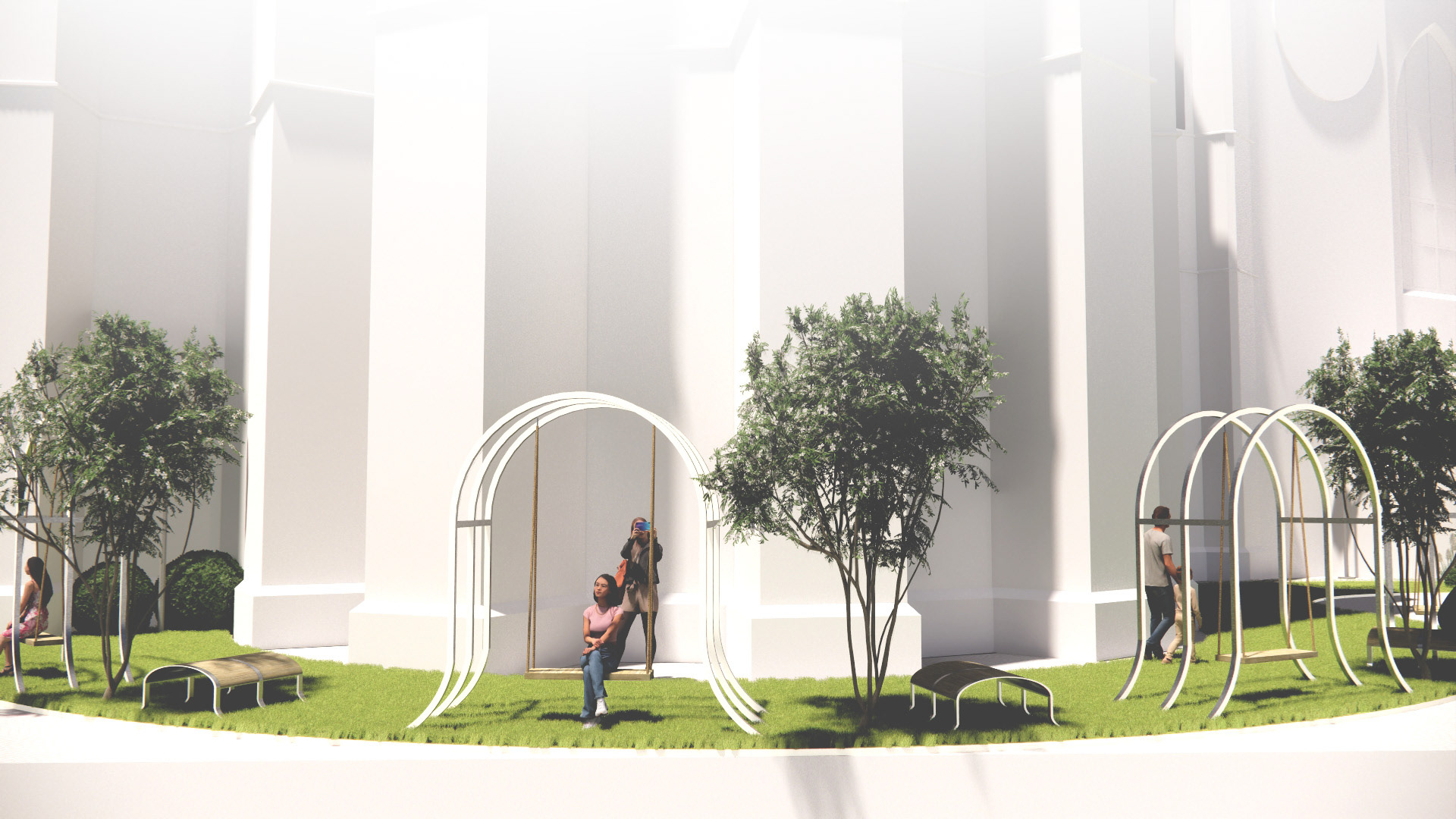

central swings

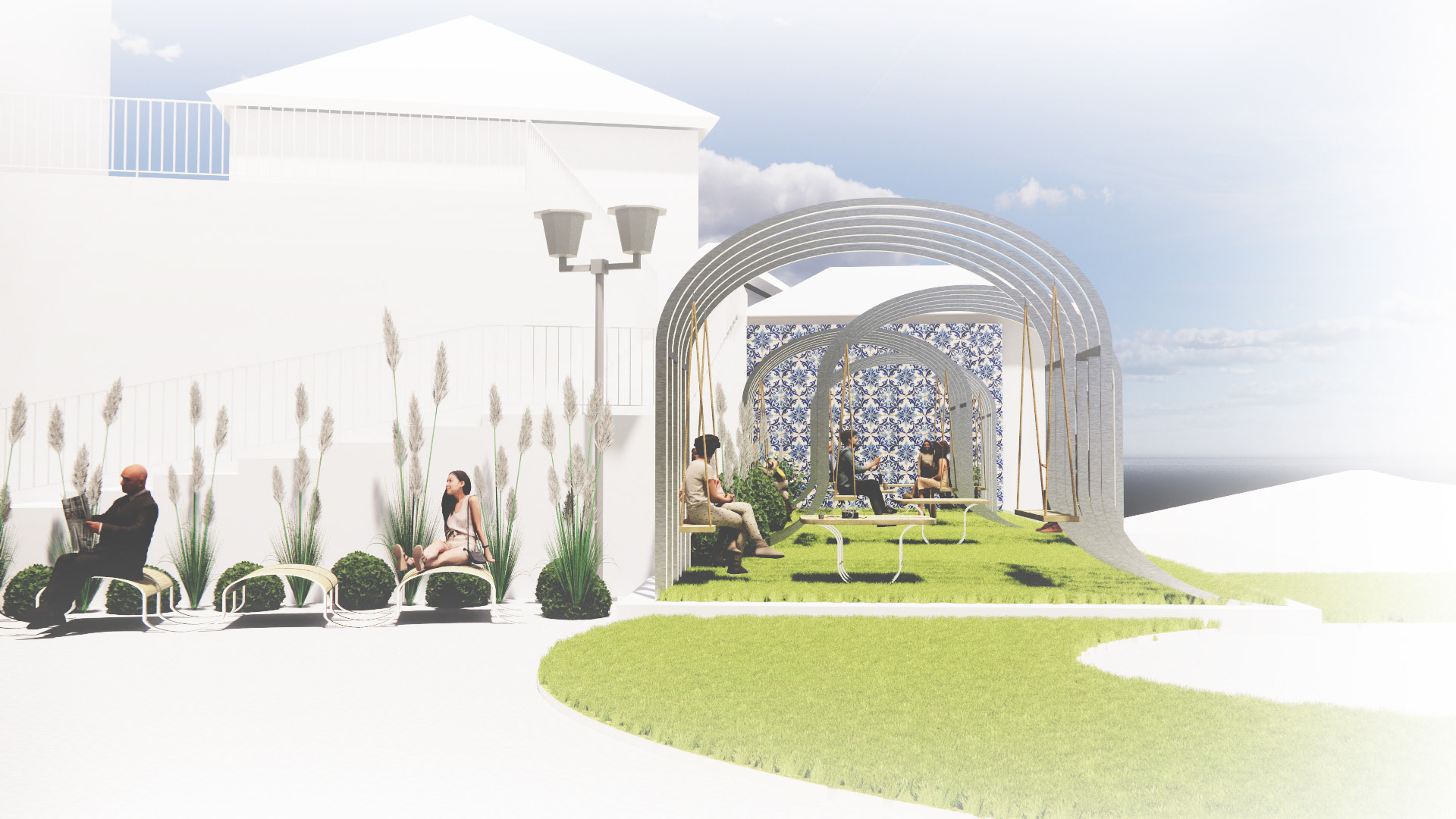

social area during day

Social area during night

These bigger curved swing structures are aimed to connect people together, and is a more sociable area which can be used both during the day and night due to the lighting. The tiled wall adds a touch of Portugal into the site, which can potentially attract more people, especially tourists

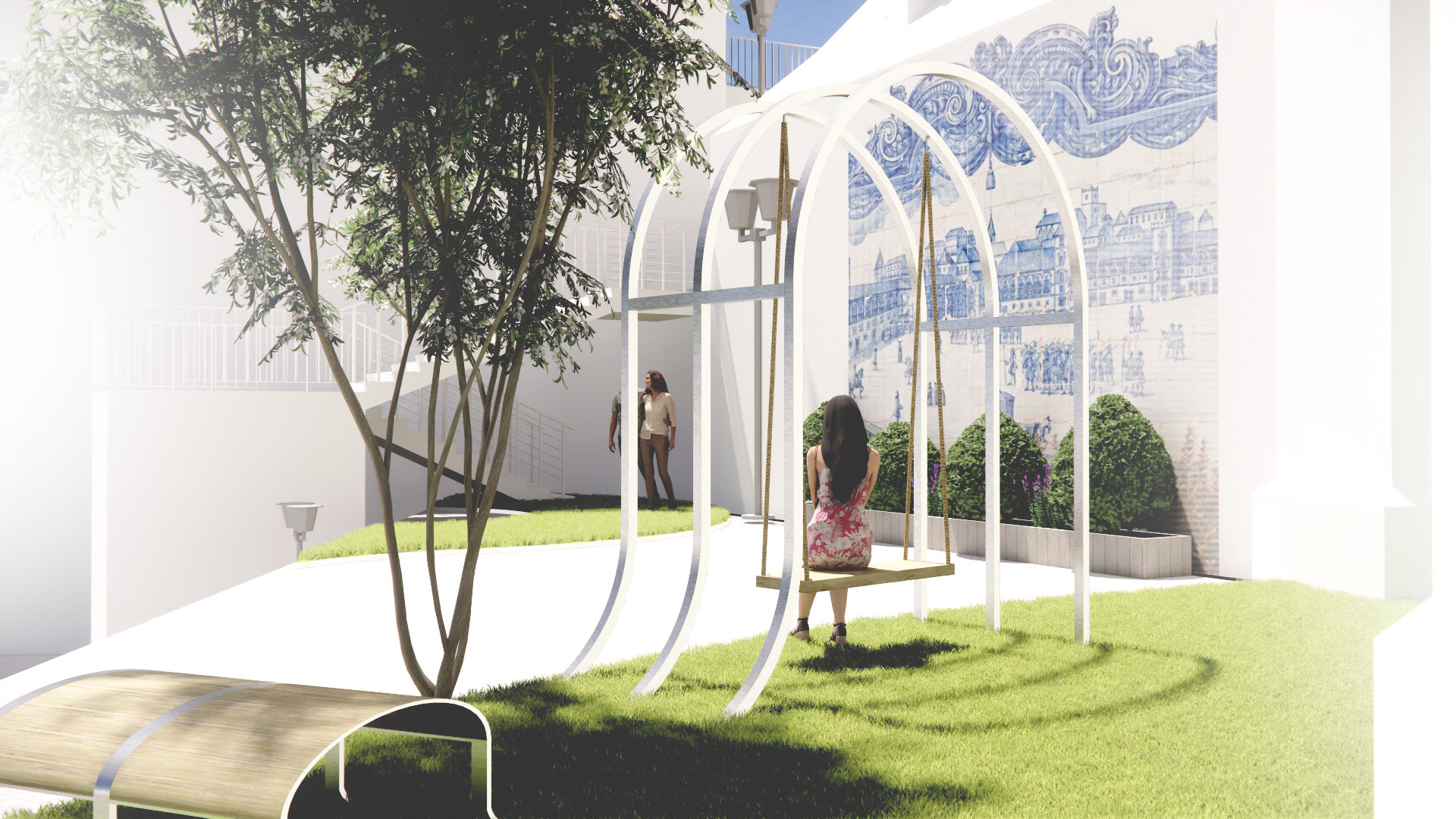

Edge swing

The central set of swings are placed in a way that mirrors the curved wall of the building behind them, connecting them with the site. They are to be made out of steel, to relate them back to the Carmo lift located within the site, which was inspired by the Eiffel tower, therefore keeping a consistent look between them. This visual shows how there is a safe amount of distance behind the swings for people to walk past as well as how the trees are placed to provide shade.

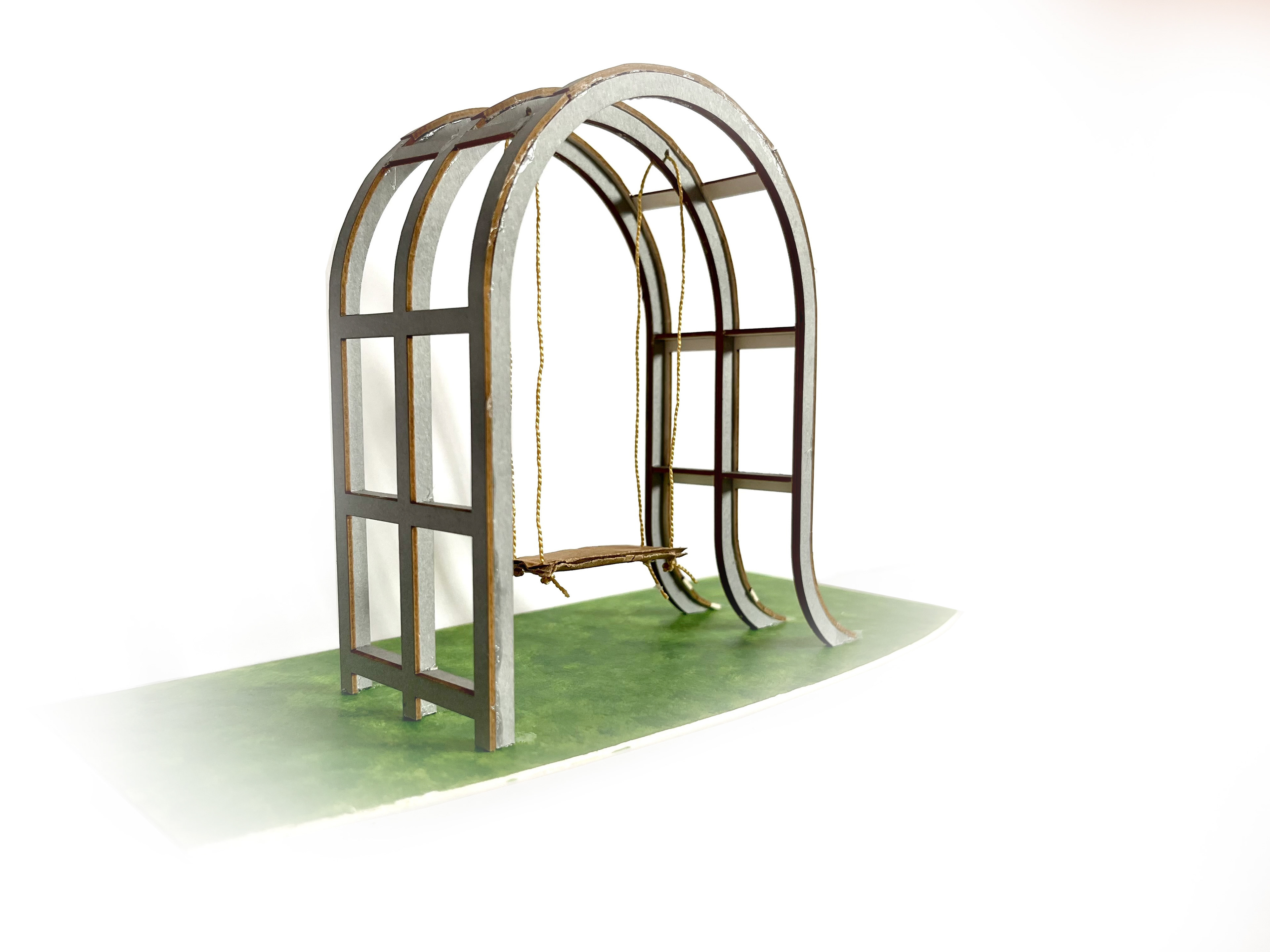

1:20 model

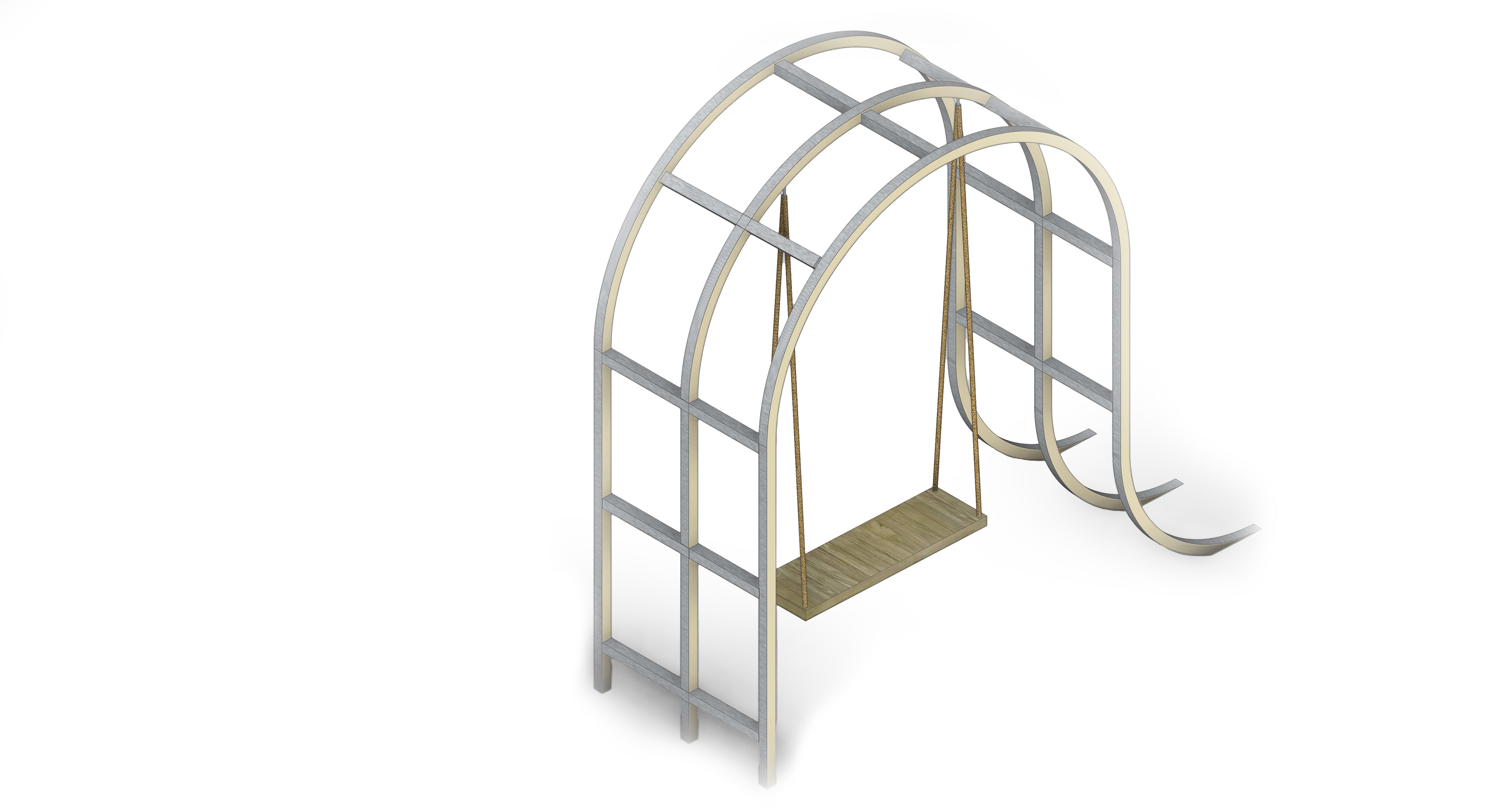

isometric view

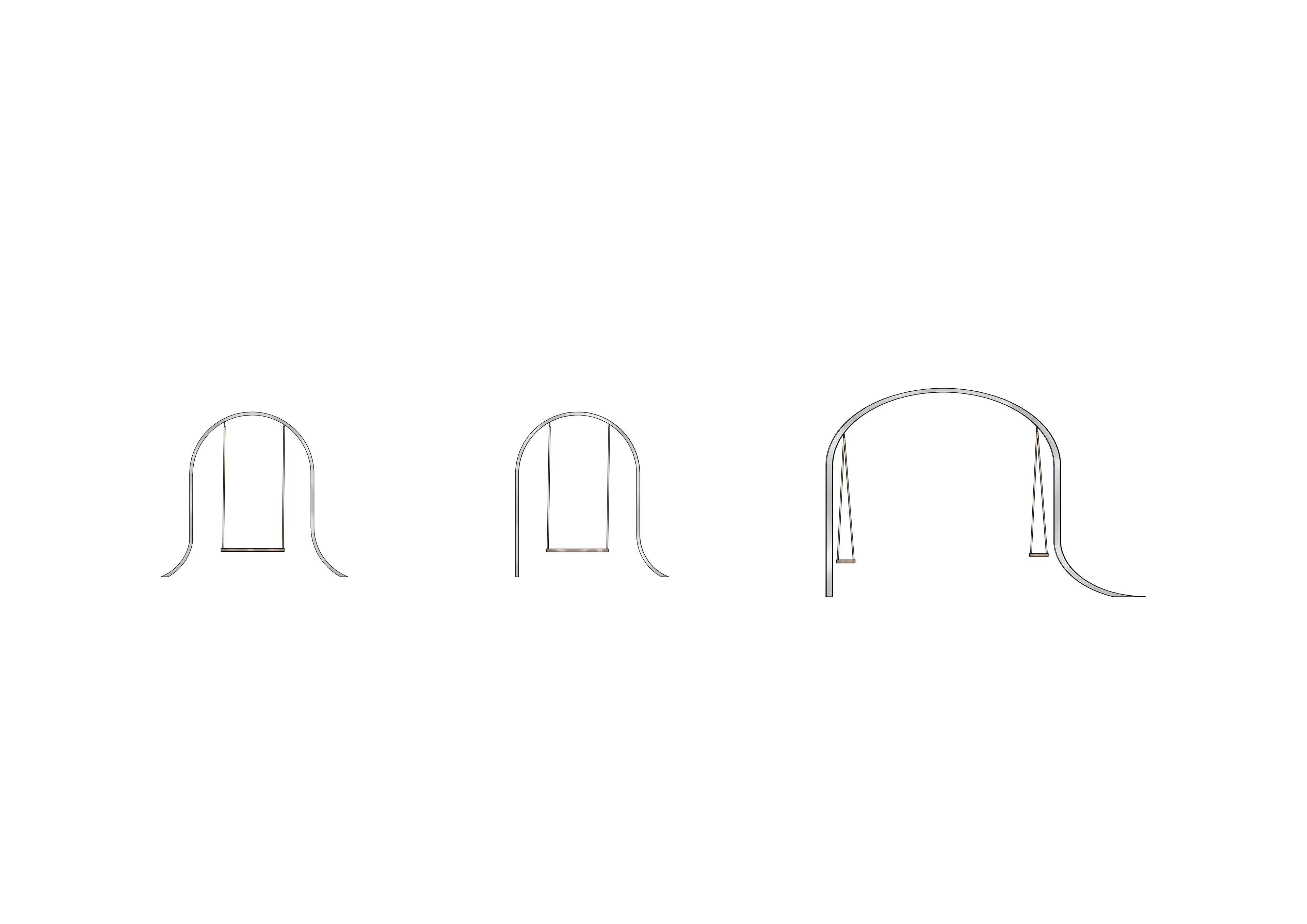

elevation of all swing types

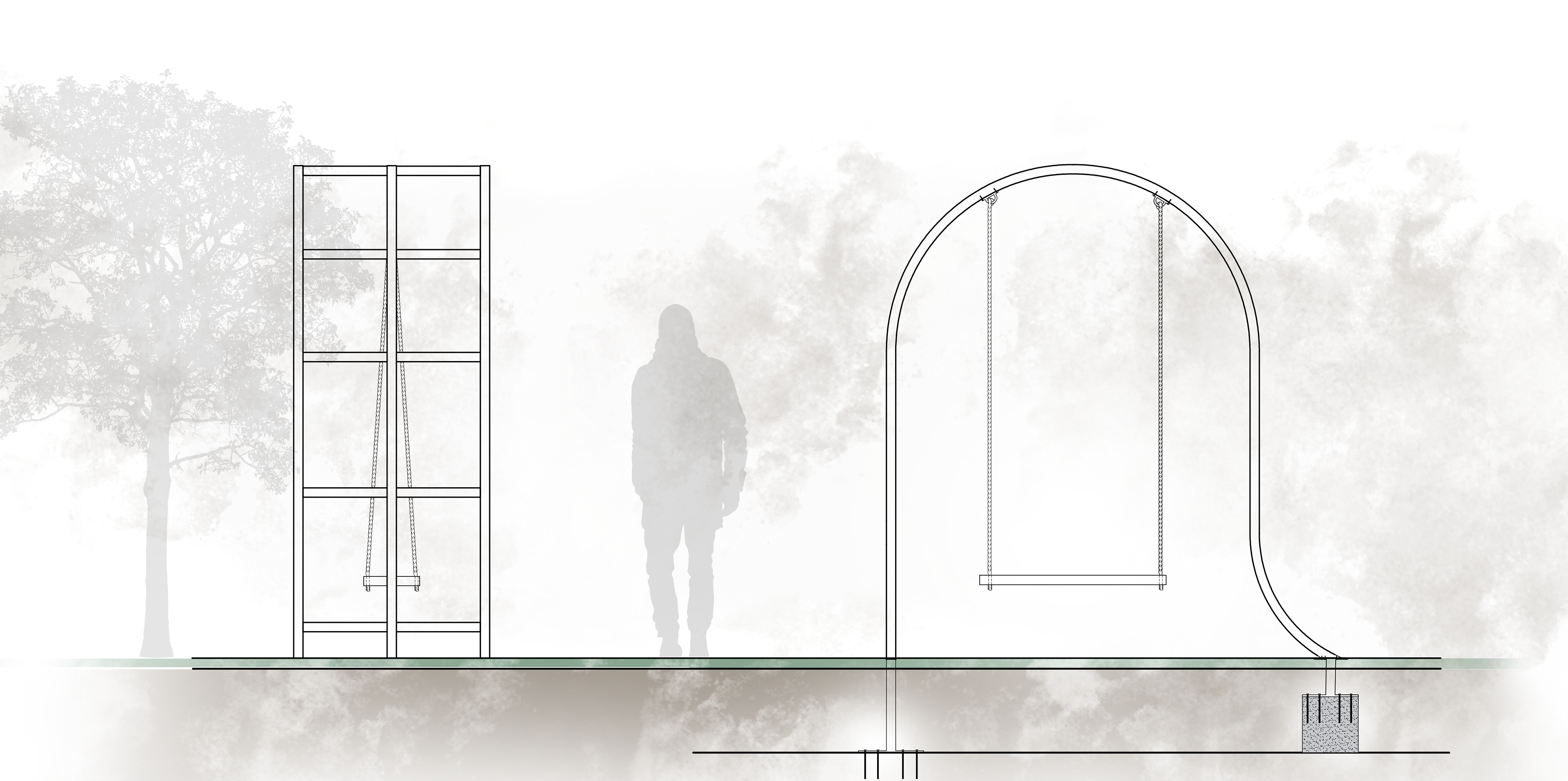

Side elevation and section

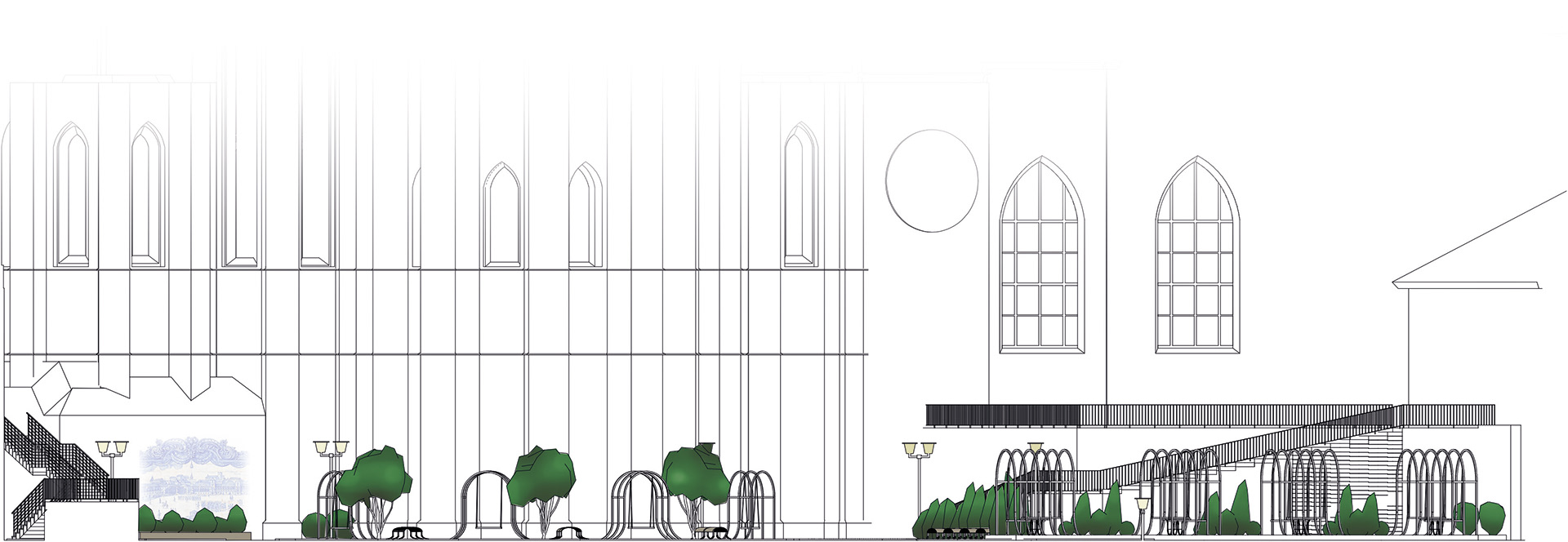

elevation

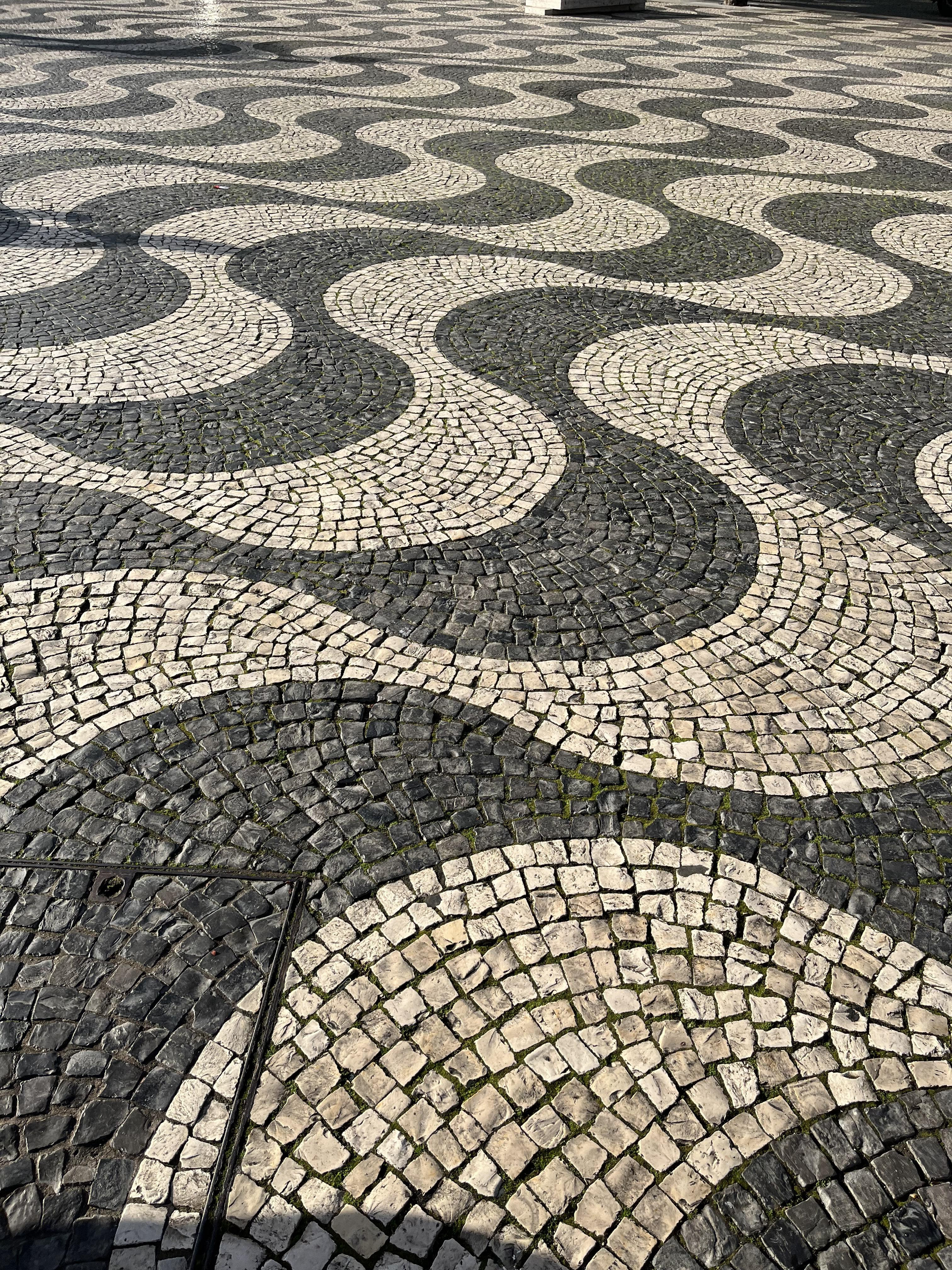

cobblestone pavement

concept sketch

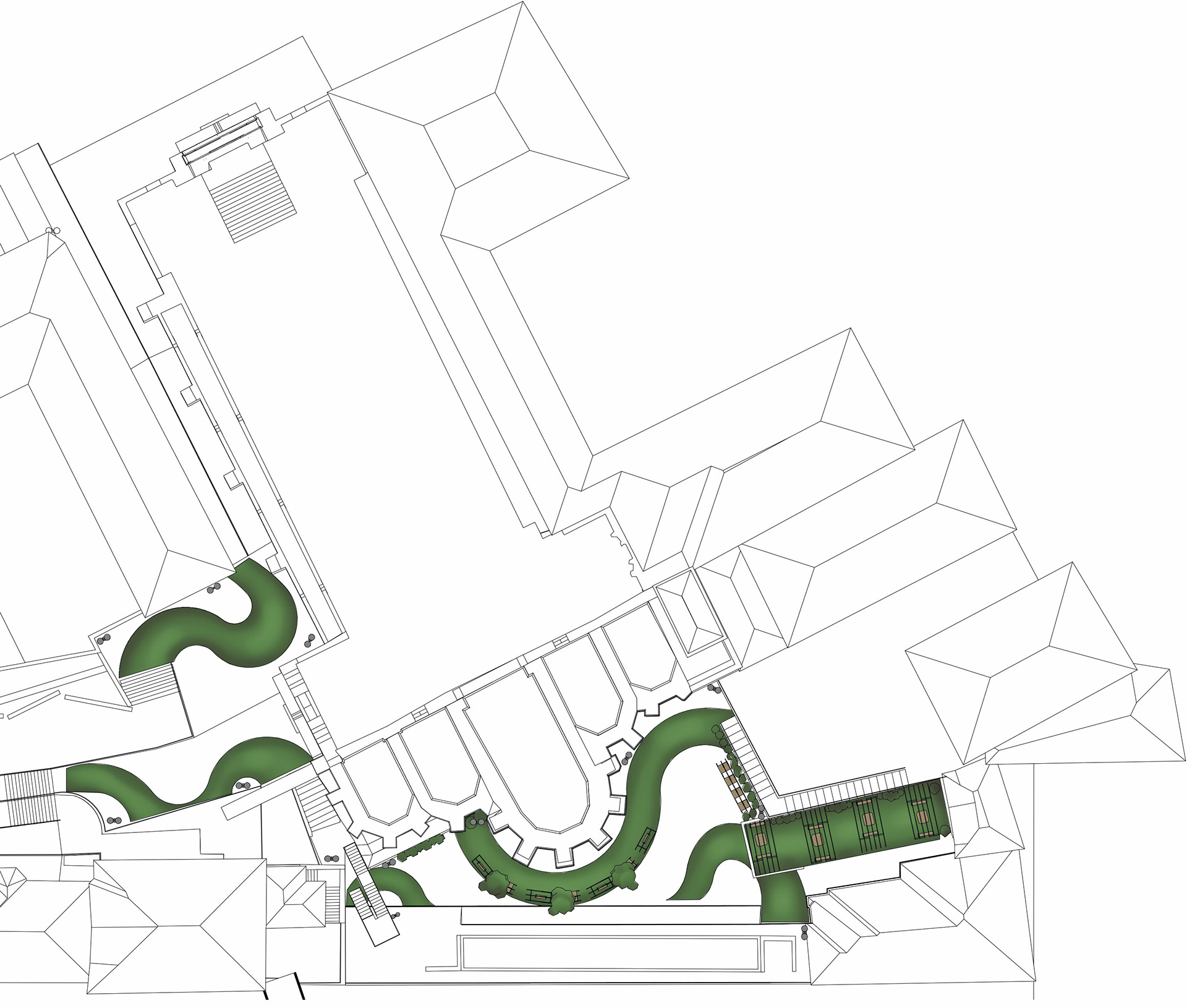

plan
