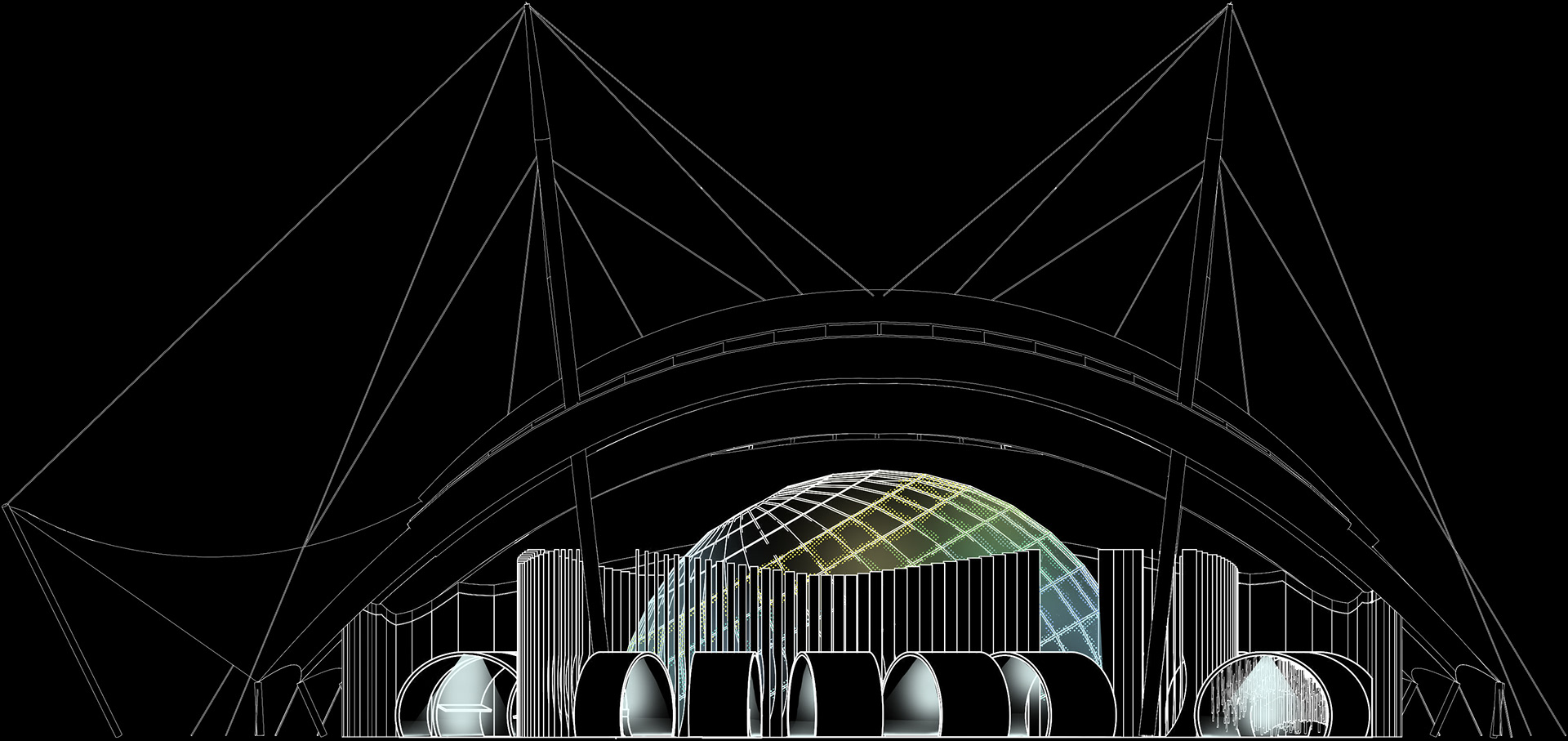

Lighting concept elevation

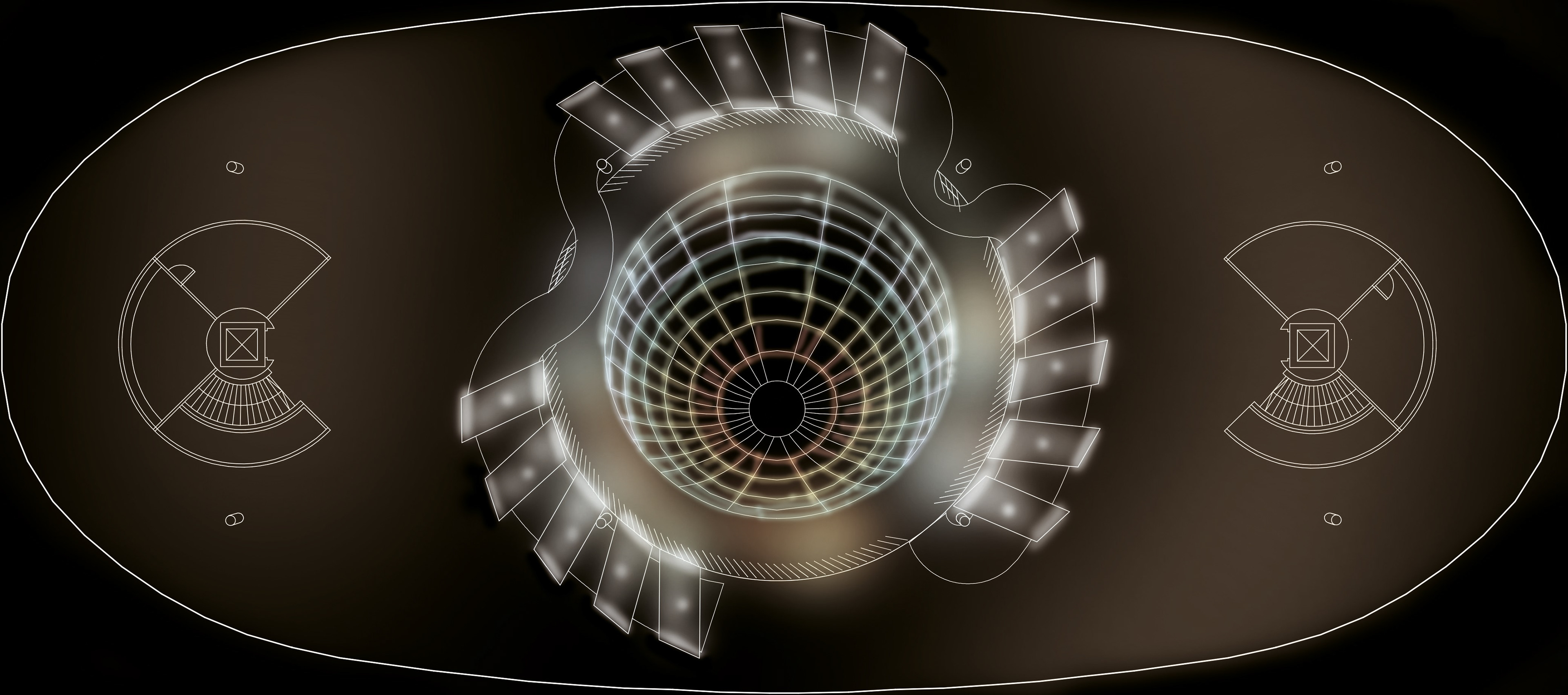

Lighting concept plan

'Garbage patch' bottle lights

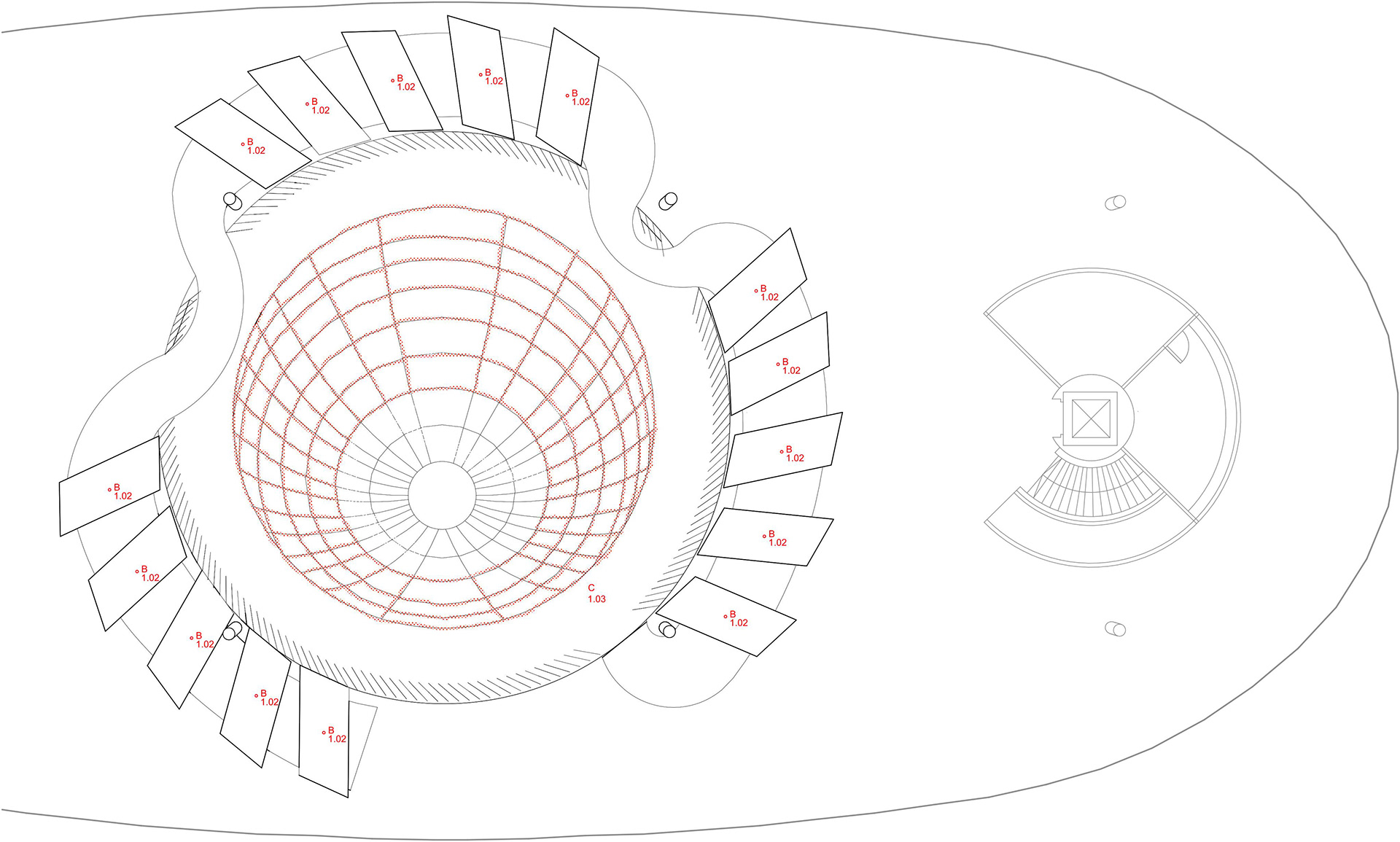

Floor plan

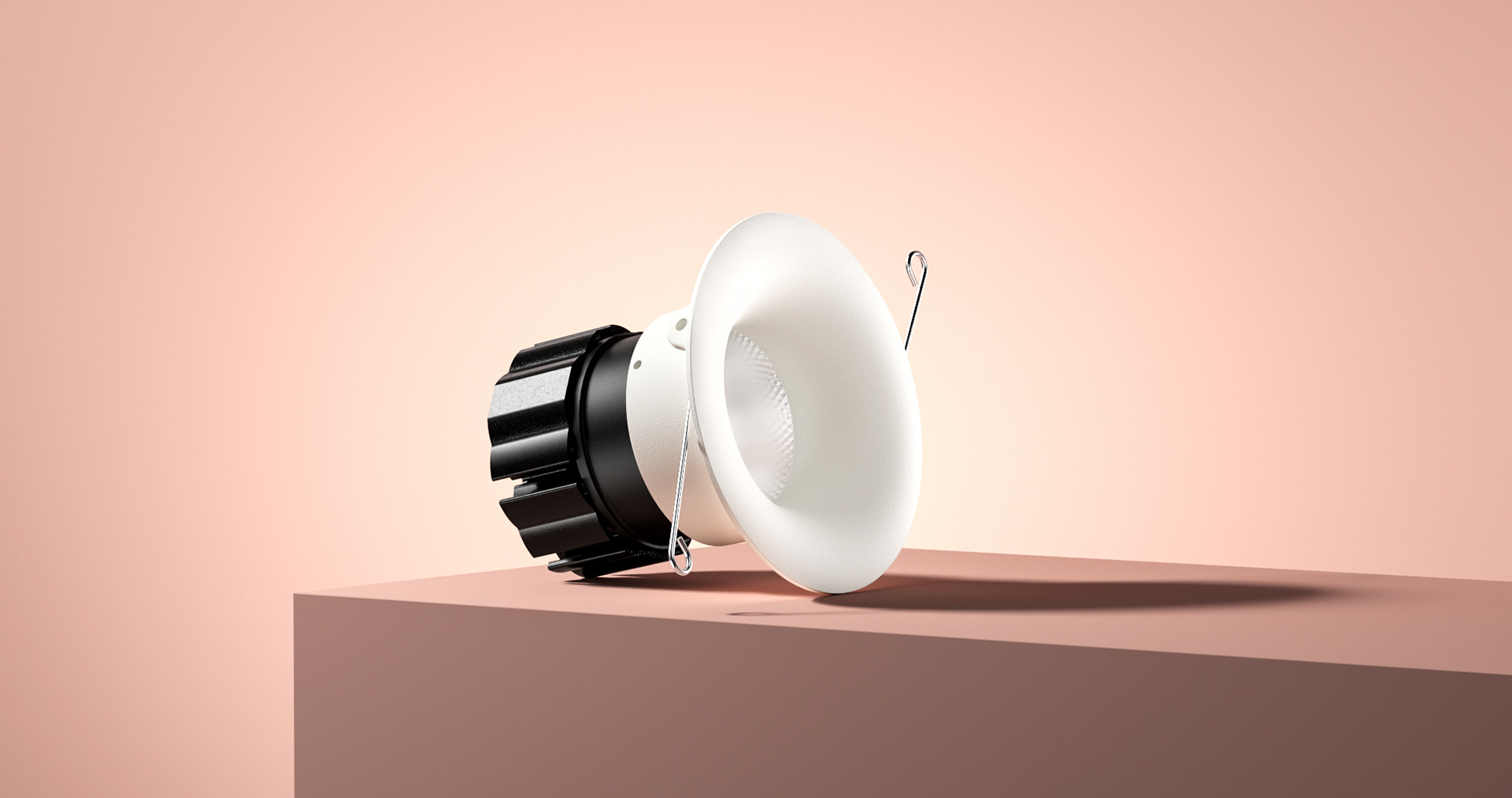

B - Down-light source ,  B 1.02  , Curve Fixed Down-light source  Power : 12.2W , Output: eldoLED, SOLOdrive , Colour Temp.: 4000K , IP: 54 , Dimensions: 77.8mm x 96mm , Mounting: Integrated
B - Down-light source , B 1.02 , Curve Fixed Down-light source Power : 12.2W , Output: eldoLED, SOLOdrive , Colour Temp.: 4000K , IP: 54 , Dimensions: 77.8mm x 96mm , Mounting: Integrated

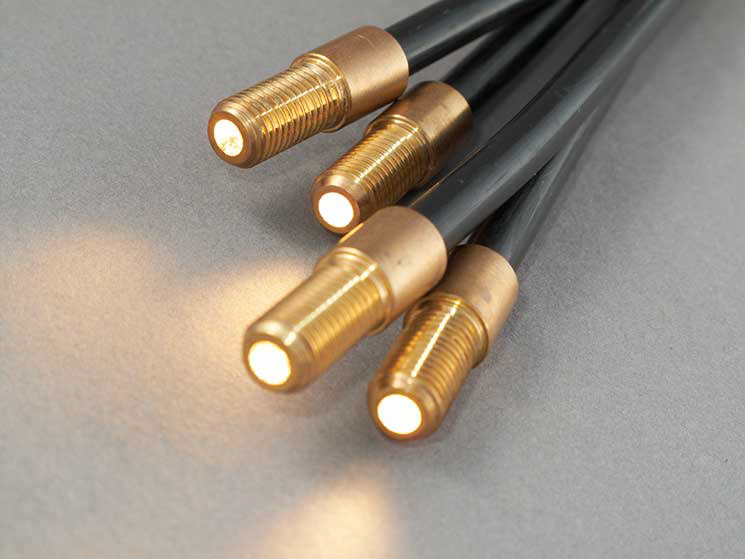

C - Fibre optics light source ,  C 1.03  Sirius White Light LED light source + End lit Glass Fibre Harness , Power : 90W , Output: DMX , Colour Temp.: 5500K , IP: 20, Dimensions: 278mm x 155mm x 94mm
C - Fibre optics light source , C 1.03 Sirius White Light LED light source + End lit Glass Fibre Harness , Power : 90W , Output: DMX , Colour Temp.: 5500K , IP: 20, Dimensions: 278mm x 155mm x 94mm

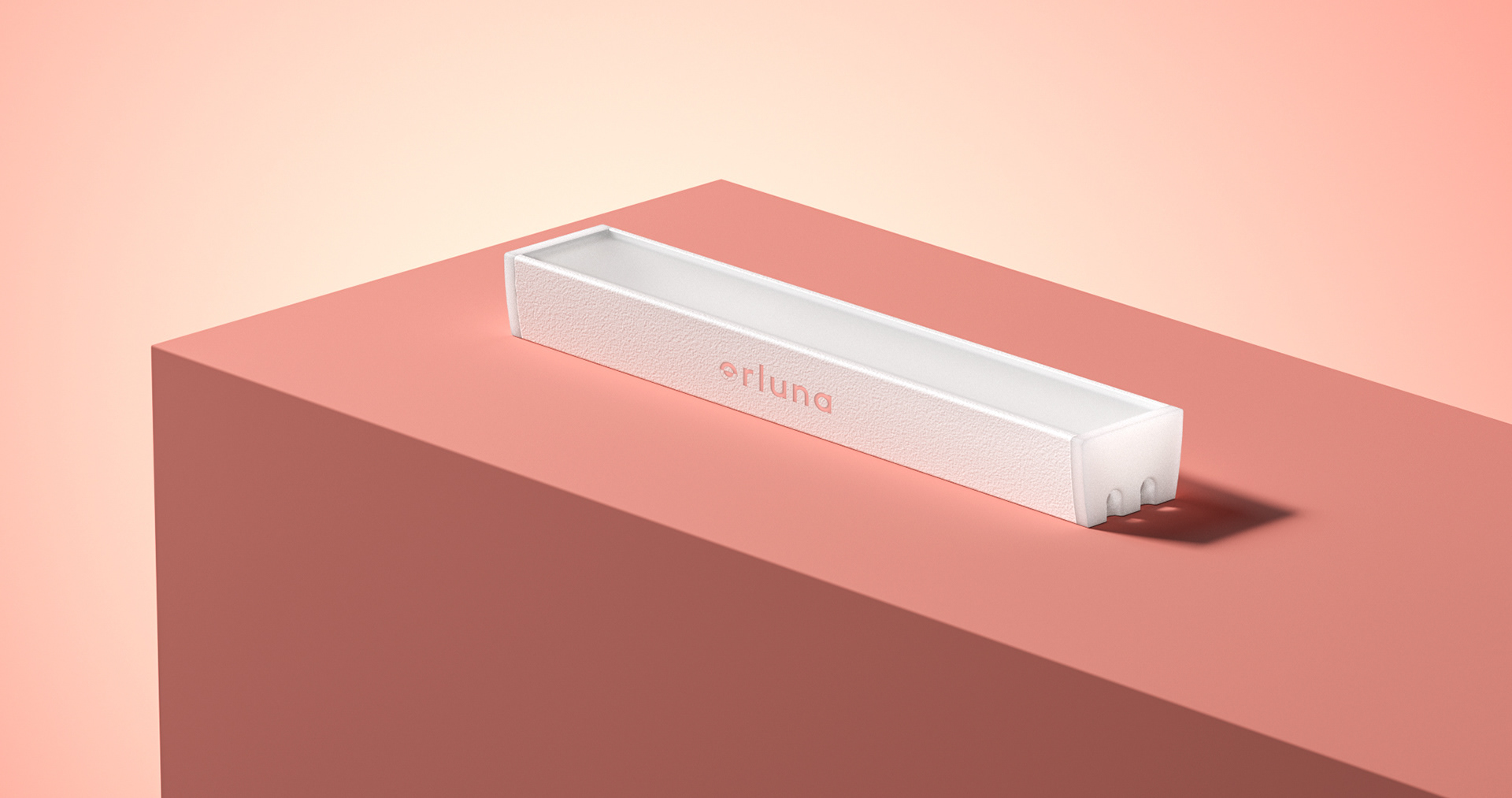

A - Linear light source , A 1.01  , Elia Linear light source , Power : 9.6W , Output: no driver , Colour Temp.: 4000K , IP: 54 , Dimensions: 11.5mm x 17.8mm x2000mm , Mounting: Integrated
A - Linear light source , A 1.01 , Elia Linear light source , Power : 9.6W , Output: no driver , Colour Temp.: 4000K , IP: 54 , Dimensions: 11.5mm x 17.8mm x2000mm , Mounting: Integrated

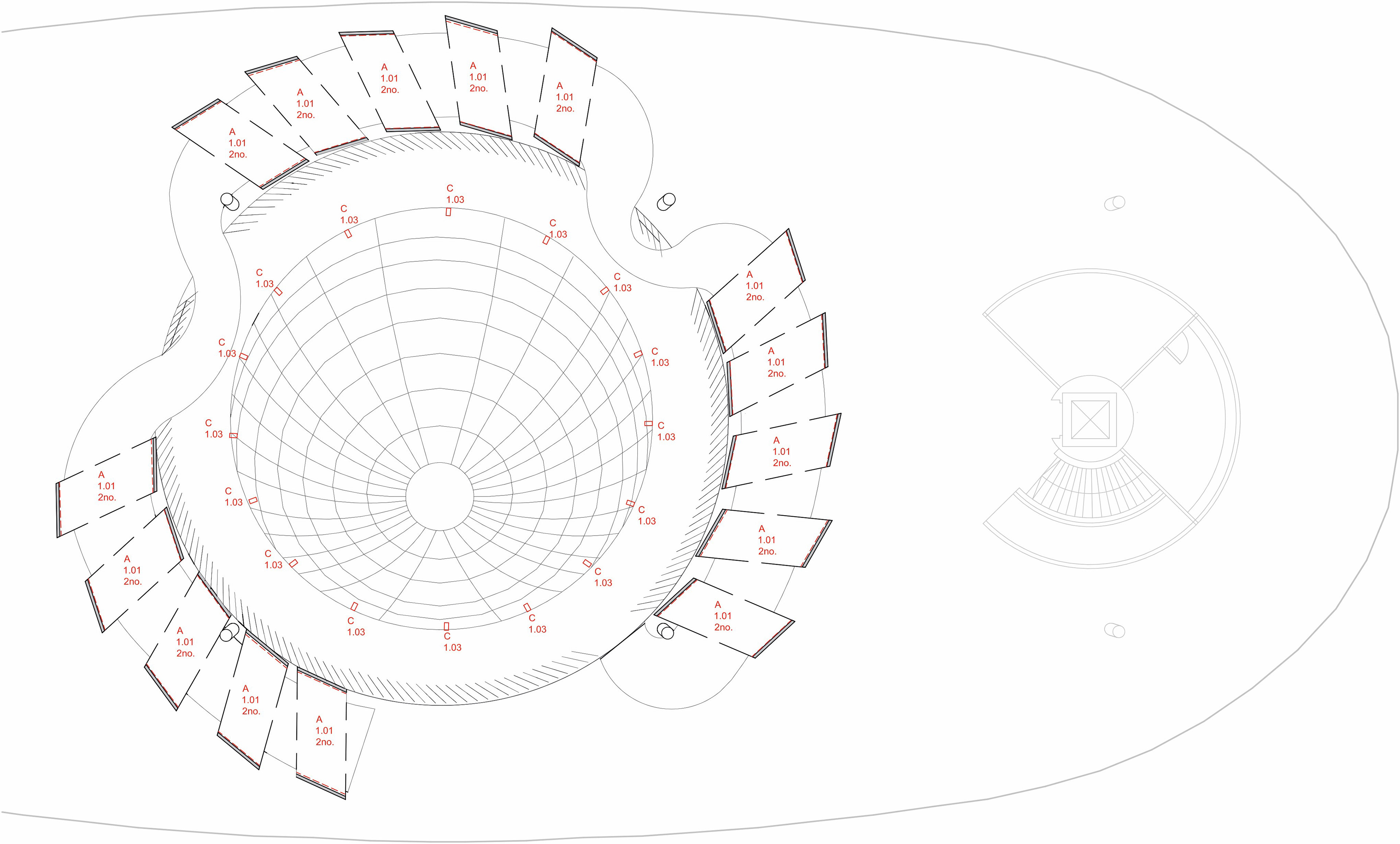

Reflected ceiling plan
